MaxxECU

GM Corvette C6 (E38 ECM) MaxxECU PRO Plugin EXTRA MAXX1962

GM Corvette C6 (E38 ECM) MaxxECU PRO Plugin EXTRA MAXX1962

$4,700.00
$0.00 $4,700.00
Sale Sold out

Description

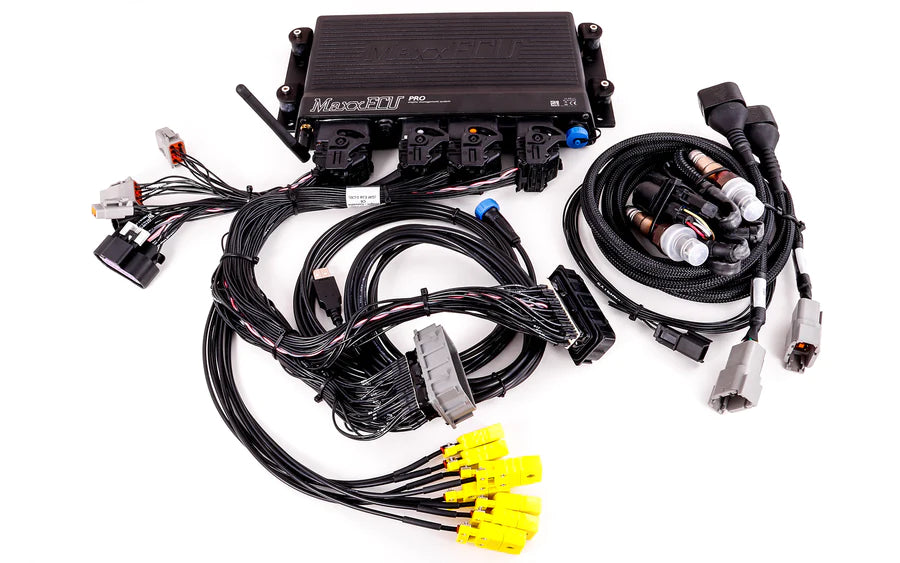

MaxxECU PRO is a product developed from the ground up to be flexible, reliable and fast. MaxxECU gives the user complete engine control!

  • Built-in MAP-sensor for boost pressure up to 3 bar (400Kpa)
  • Super fast and reliable USB communication between ECU and PC
  • MDash Android app over bluetooth
  • Injectors can be replaced with optional high or low impedance
  • No change in the vehicle's original system needs to be done
  • Can be upgraded with additional connectors to measure up to 12 TYPE-K sensors

Target Engines of MaxxECU PRO

  • All 1-12 cylinder engines (4-stroke)
  • Up to 12 cylinders fully sequentially
  • Up to 12 cylinders in wasted spark

MaxxECU PRO inputs

  • Intake air temperature sensor (IAT)
  • Coolant temperature sensor (CLT)
  • Throttle position sensor (TPS)
  • Dual lambda (WBO) sensor. Uses sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2 and 4.9
  • 2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference
  • 6 temperature sensors. Can be used for logging or control of additional functions
  • 16 0-5V inputs. Can be used for additional sensors such as measurement of fuel / oil pressure
  • 10 digital inputs used for example speed sensors (4 can use VR-sensors) or switches
  • Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost
  • 12 EGT TYPE-K/N inputs with separate harness (up tp 1200C/2200F+

MaxxECU PRO outputs

  • 16 peak/hold injector outputs. 1-2 high or low impedance injectors per output. 8A per output
  • 12 ignition outputs. 5V signals to drive ignition modules, CDI units / coils
  • 30 extra outputs for additional features. Can be adjusted to control virtually anything like fuel pumps, idle valves. GPO 1-8 (2A), GPO 9/10 (5A), GPO 11-14(2A), GPO 15-23 (12V sourcing, 4A), GPO 23-30 (1.5A)
  • Dual E-Throttle support

Specifications

  • CAN bus for expansion modules, OEM vehicle CAN, OBDII
  • USB communication for tuning with MTune
  • Bluetooth for connecting to mobile devices with MDash
  • 8MB memory for internal logging, up to 1000Hz
  • Supply voltage 8-22V
  • ARM Cortex-M3 120MHz main processor. Three extra processors to handle the triggers, injectors and EGT
  • Resolution on ignition: 0.1 degrees
  • Resolution on injectors: 0.001 ms
  • Updates the fuel and ignition calculations 2000 times per second
  • The fastest PC communication on the market
  • 50Hz sampling rate on all EGT inputs
  • 1000Hz sampling rate on all analog inputs
  • Weight: 1137g
  • 252x180x40mm excluding protruding connectors
  • Built-in accelerometer up to 8G
  • Waterproofed aluminium case with shock absorbers
View full details
