MaxxECU

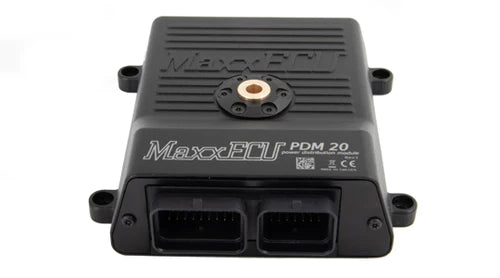

MaxxECU PDM20

MaxxECU PDM20

Regular price $2,360.00
Regular price Sale price $2,360.00
Sale Sold out

Description

The MaxxECU PDM20 is an advanced Power Distribution Module for MaxxECU units and is designed to replace fuses and relays in a modern way.

  • Max 230A
  • 20 outputs (8x25A 8x15A 4x8A)
  • 7 digital / analog 0-24V inputs
  • All outputs can be PWM controlled
  • Dedicated +5V power supply and sensor ground
  • CAN bus for communication and setup management with MaxxECU MTune PC software
  • Overcurrent protected adjustable levels with automatic restart with soft start option
  • Warning levels for under over currents
  • Works with all MaxxECU devices
  • Support for CAN keypads
  • Error code handling
  • Built-in energy saving mode that draws only 0.004A


  • -40 to +125 deg C temperature range
  • Reverse polarity protection
  • 6-22V operating voltage
  • 32-bit ARM Cortex-M3 CPU
  • 132x140x42mm (excluding protruding connectors)
  • 1x 34-pin and 1x 26-pin Superseal connectors
  • M6 screw for battery connection
  • PC communication over CAN-bus via any Maxx ECU to MTune
  • Maxx ECU PDM 20 inputs
  • 7 digital / analog (0-24V) inputs
  • Software selectable 12V pullup
  • CAN keypad (4,6,8,12 keys)
  • Maxx ECU PDM 20 outputs
  • 230A maximum current throughput
  • All outputs are PWM capable
  • Current and voltage measuring
  • 6 outputs with H-bridge drivers
  • Overtemperature protection
  • Output overcurrent protection via emulated fuse characteristics and hardware backup protection
  • Monitored +5V sensor supply output
  • Outputs can be paired to increase current capacity
View full details
